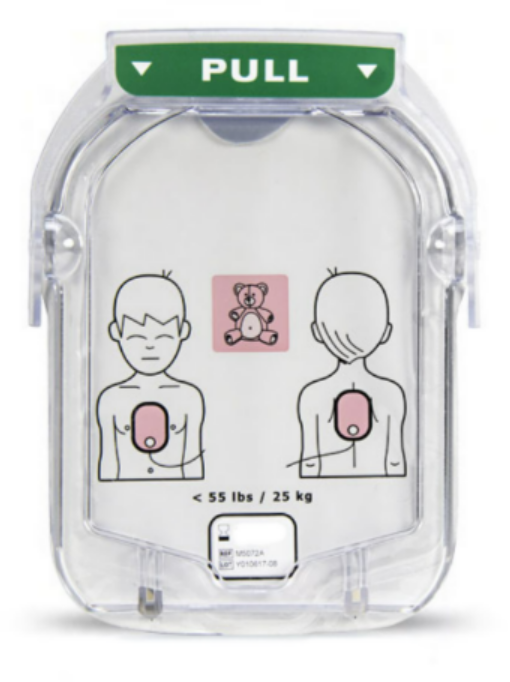

M5072A Philips Replacement Infant Pads
The Philips HeartStart OnSite Child SMART Pads, model M5072A, are designed for use with Philips HeartStart OnSite AEDs (M5066A & M5068A, and Philips M5067A). These pads are suitable for children under 8 years of age or weighing less than 55 pounds (25 kg), including infants. These pads instruct the defibrillator to reduce the energy of its shock from 150 to 50 Joules (J), a more appropriate dosage. Some key points about these pads include: Replacement Schedule: Philips AED pads must be replaced after use or once every 2 years regardless of use. An expiration date is marked on the front of the pads cartridge.
What you need to know

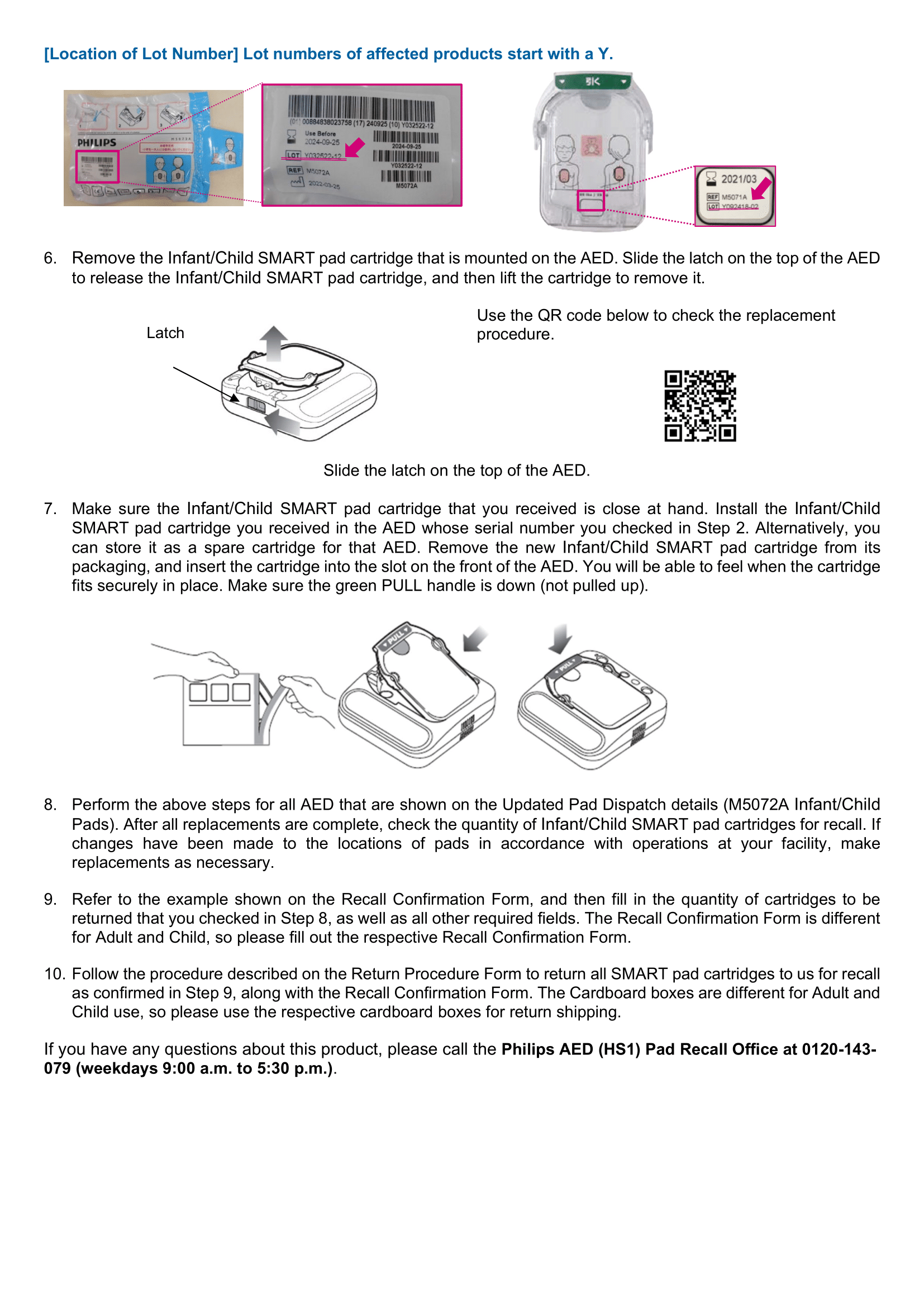

To replace your pads, locate the latch at the top edge of the AED and slide it to the side. The pads cartridge will be released. Lift out the used pads cartridge.
Remove a new Infant/Child SMART Pads Cartridge from its package and insert the cartridge into the cartridge well on the front of the HeartStart. It should click into place when properly seated. The green PULL handle should be all the way down.
To prevent the pads’ adhesive gel from drying out, do not open the hard cover or film seal of the cartridge until you need to use the pads.
