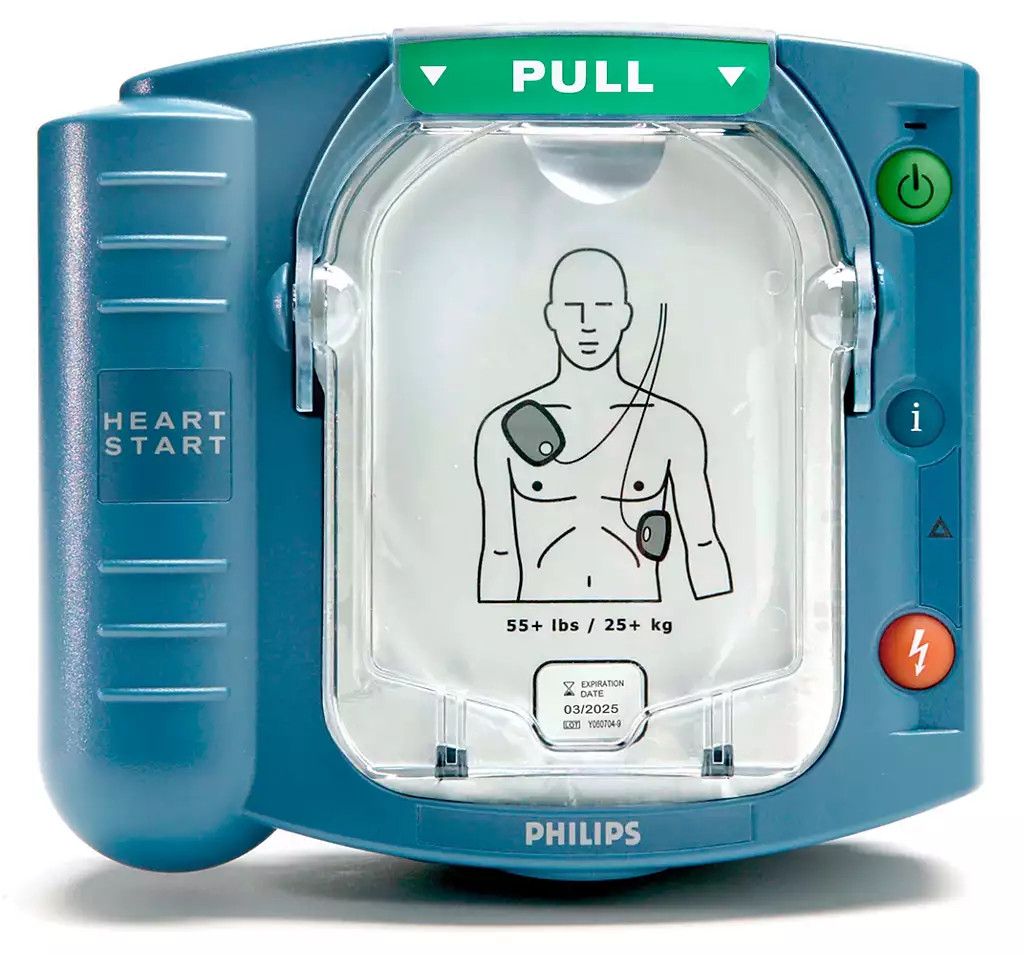

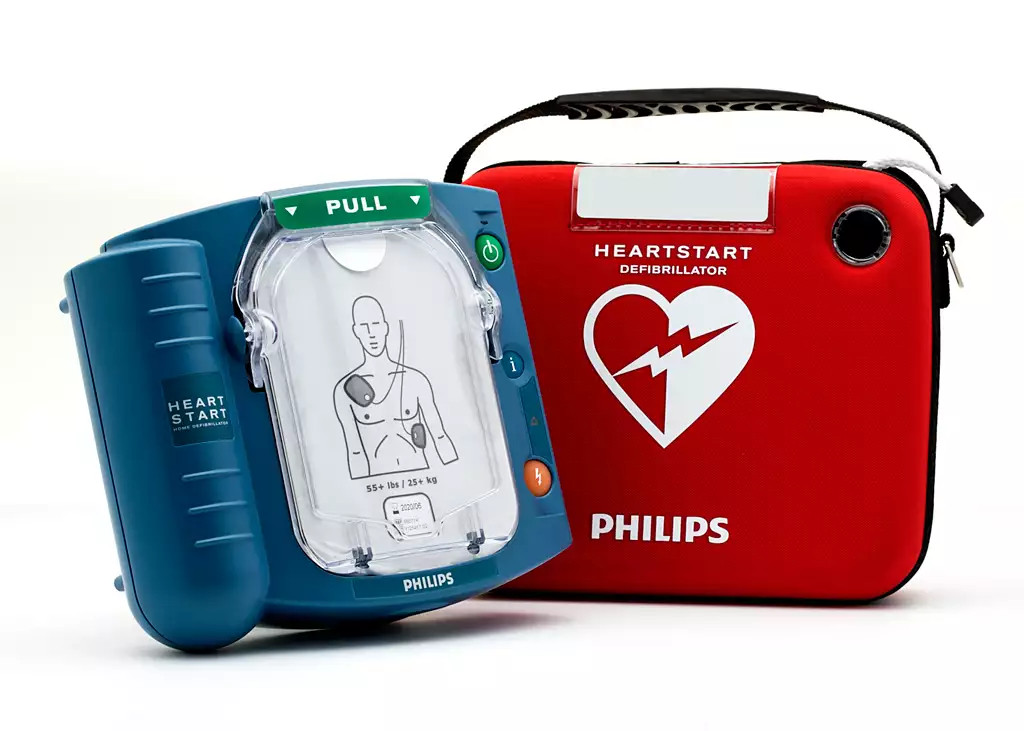

Philips HeartStart OnSite AED with Standard Carrying Case - M5066A C02
Automated external defibrillator
Designed for the ordinary person in the extraordinary moment, Philips HeartStart OnSite AED is ready to act and virtually ready to go. It allows anyone with little or no training to treat the most common cause of suspected sudden cardiac arrest (SCA) by delivering a shock quickly and effectively, wherever SCA happens. The OnSite automated external defibrillator provides practically real-time guidance through step-by-step voice commands from pad placement to performing CPR. When every minute counts, Philips HeartStart OnSite defibrillator is the partner by your side. Side by side. Step by step.
Includes:
- Defibrillator
- Battery (one, pre-installed)
- SMART Pads (Aduone set, pre-installed)
- 1 battery with a 4-year factory warranty
- User manual
- Quick guide
Specifications:
- Battery
- Type: 9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
- Capacity: Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003)
- Install-by Date: Battery is labeled with an install-by date of at least five years from date of manufacture
- Standby Life: Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified Standby Temperature range, assuming one battery insertion test and no defibrillation uses)
- Product
- Defibrillation peak current - Adult: 32 A (150 J nominal) into a 50 ohm load
- Defibrillation peak current - Pediatric: 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge - sold separately)
- Shock-to-Shock Cycle Time: Typically less than 20 seconds between shocks in a series
- Quick Shock: Able to deliver a shock after the end of a CPR interval, typically in eight seconds
- Voice Instructions: Detailed voice messages guide responder through use of the defibrillator
- CPR Guidance: Instructions for adult and infant/child CPR available at user selection
- Shock Delivery: Via adhesive pads placed on patient's bare skin as illustrated on pads
- Controls: Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button
- Indicators: Ready light, blue i-button, caution light
- SMART Pads
- Energy delivered: Adult: nominal 150 joules into a 50 ohm load; Infant/Child: nominal 50 joules into a 50 ohm load
- How Supplied: Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution
- Active Surface Area: 85 cm² (13.2 in²) each
- Cable Length: Adult pads: 137 cm (54"); Infant/Child pads: 102 cm (40")
- Use-by Date: Cartridge is labeled with a use-by date of at least two years from date of manufacture
-
-
Training pads (optional - sold separate): Special pads put HeartStart OnSite into training mode and disable its energy delivery capability. Training pads feature 8 real-world training scripts. Use with training mat (included) or with adapters on manikins
