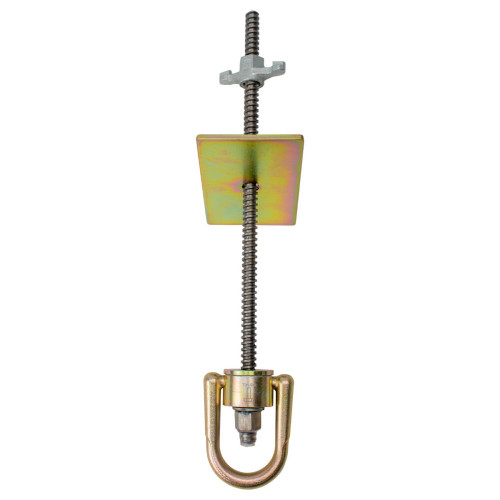

SAFEWAZE 021-4043 10K Swivel Anchor & Back Plate - Each

10K Swivel Anchor & Back Plate

The Back Plate Anchor is designed for use on reinforced cinder block, chillers, metal structures or AC unit walls from 4″ to 12″. This plate assembly includes the 10K Swivel anchor and fastener.

Features:

• Versatile use
• 5/8" bolt and wingnut
• Maximum span up to 12"
• Use with 10K Swivel Anchor

Specifications:

• Materials: Zinc-plated steel
• Weight: 1.9 lbs. (839 g)
• Plate Dimensions: 6" x 4" x 1/4"
• Minimum Breaking Strength: 10,000 lbs.
• ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
• OSHA Weight Capacity: Up to 420 lbs. (191 kg)
• ANSI Standards: Z359.18-2017 Type A
• OSHA Standards: 1926.502, 1910.140, 1910.66
