Concrete Anchor

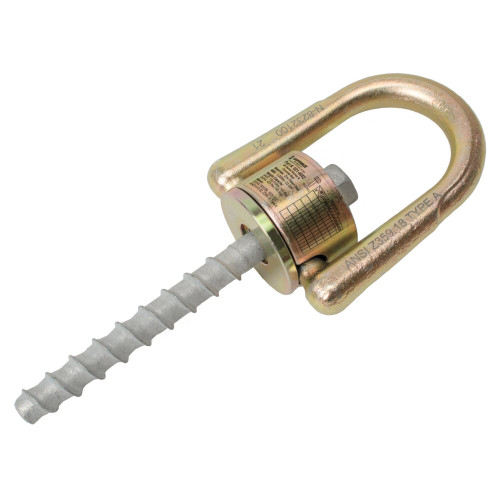

The 5K Swivel Anchor & Concrete Bolt is a heavy duty mobile solution for use as a single point anchor or as part of a horizontal lifeline system. Built with corrosive resistant components and easily installed or removed in seconds.
Features:
- 180° / 360° rotating connection point for increased mobility
- Galvanized 0.5" x 6" concrete bolt
- Lightweight mobile design
- Installs quickly and easily
- Temporary or permanent
- Versatile vertical or horizontal use
| Materials: | Zinc plated steel |
| Weight: | 2.1 lbs. (953 g) |
| Length: | 6.3" (159 mm) |
| Diameter: | 0.8" (19 mm) |
| Minimum Breaking Strength: | 5,000 lbs. minimum |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
