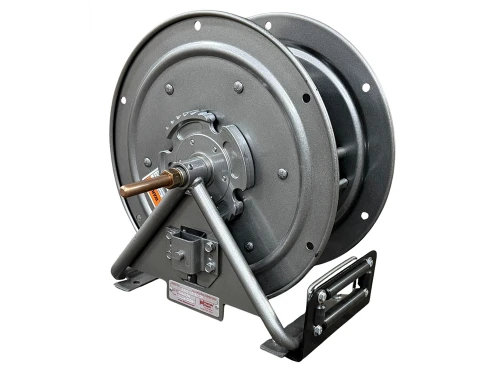

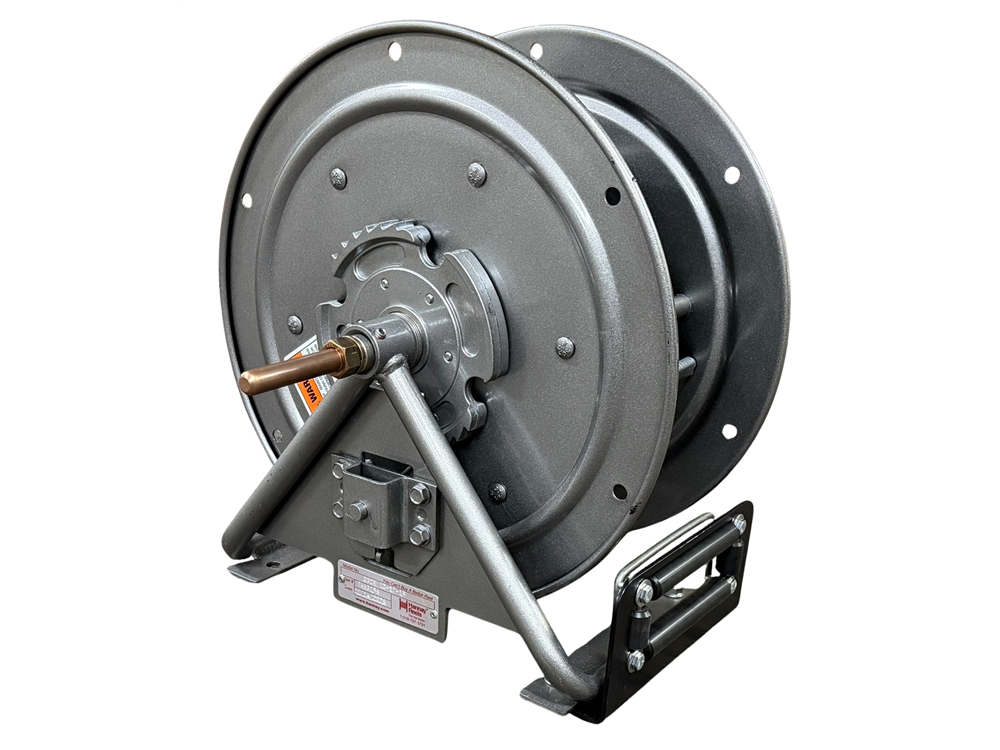

Hastings Hannay Auto Rewind Reel Assembly (21362-H)

Product Description

Retractable Grounding Reel Only, Spring Retractable

Grounding reels provide an efficient and positive means to ground trucks working on or near energized
lines
Grounding reels have been tested for maximum fault current rating and can be tested without removing
from the truck
The ground connection from reel to the vehicle is made during the initial installation
Reels are designed to be bolted to the vehicle so they can be removed easily for transfer to new trucks
Spring rewind drum for controlled payout and take up
4 way cable guide rollers allow for one man operation and prevents excessive wear on the ground cable
Weather tight construction to prevent corrosion
All cataloged ground reels with factory installed cables include a 6’ length of 2/0 ground cable to connect
the reel to the truck.
- Item A30205, a 4 way bronze tee connector is provided to connect one end of the
  cable to the ground stud on the reel. The other end must be connected to the truck frame by a suitable
  means.
Cable Size Maximum Capacity:
- #2 cable - 75 feet,
- 1/0 cable - 75 feet,
- 2/0 cable - 65 feet,
- 4/0 cable - 50 feet
  - Configurations utilizing 4/0 cable will include a 6 foot section of 4/0 cable for the grounding to the truck.
Tested to 43KA at 30 cycles
Yellow vinyl reel cover (413-01-029-H) sold separately
