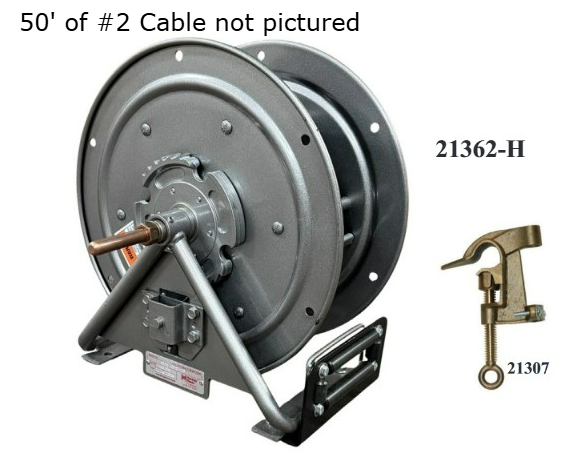

Hastings 21373-H Truck Grounding Reel with 50 Feet of #2 Cable | Each

21362-H REEL WITH 50’ OF #2 YELLOW GROUND CABLE FACTORY INSTALLED AND 21307 BRONZE CLAMP ONE END

• Grounding reels provide an efficient and positive means to ground trucks working on or near energized
  lines
• Grounding reels have been tested for maximum fault current rating and can be tested without removing
  from the truck
• The ground connection from reel to the vehicle is made during the initial installation
• Reels are designed to be bolted to the vehicle so they can be removed easily for transfer to new trucks
• Spring rewind drum for controlled payout and take up
• 4-way cable guide rollers allow for one man operation and prevents excessive wear on the ground cable
• Weather tight construction to prevent corrosion
• All cataloged ground reels with factory installed cables include a 6’ length of 2/0 ground cable to connect
  the reel to the truck. Item A30205, a 4-way bronze tee connector, is provided to connect one end of the
  cable to the ground stud on the reel. The other end must be connected to the truck frame by a suitable
  means.
