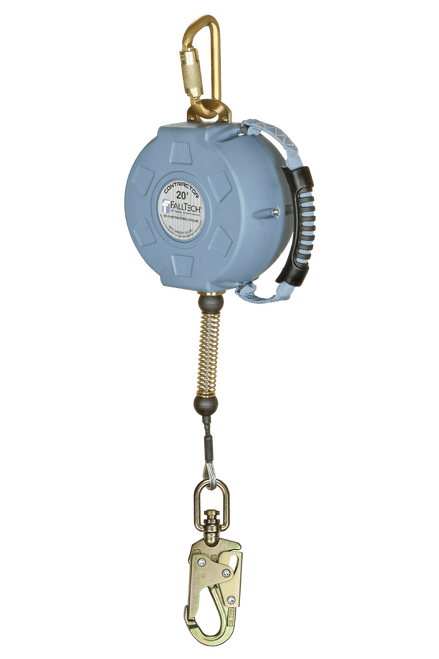

Contractor Class 1 SRL with Galvanized Cable and Anchorage Carabiner
Features:
- 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
- Features glass-filled nylon housing for durable impact resistance.
- Lifeline includes recoil spring bumper to reduce retraction lock-up
- Rugged internal steel drum and inertial braking system deliver reliable performance
- SRL includes double-locking twist-lock anchorage carabiner
- Complies with ANSI Z359.14-2021 Class 1 SRL. Learn more and download White Paper
Material Specifications:
-
Cable: 3/16" galvanized steel; 3,600 lb min. static strength
-
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
-
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Performance Specifications:
-
Static Strength: 3,600 lb min.
-
ANSI SRL Class/Type: Class 1 SRL
-
Avg. Arrest Force: 900 lb
-
Max. Arrest Force: 1,800 lb
-
Max. Arrest Distance: 42"
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 310 lb max.
Compliant With:
-
ANSI Z359.14-2021
- OSHA 1926.502 and 1910.66
