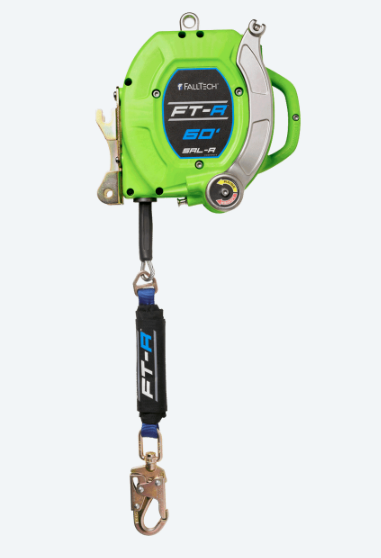

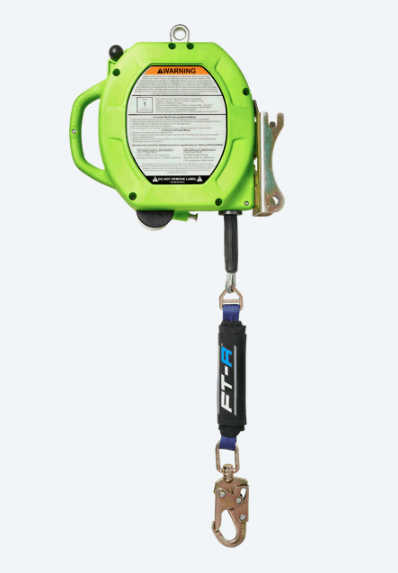

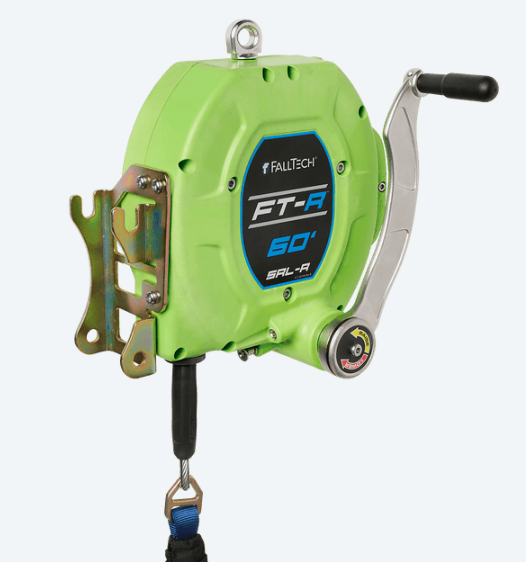

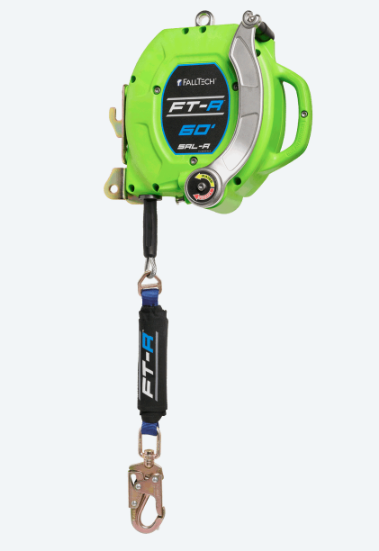

60' FT-R Class 1 SRL-R with Steel Swivel Snap Hook
Built for the most demanding confined space work, the FT-R SRL-R delivers more than fall protection—it delivers rescue. Lightweight, smooth, and compact, it’s engineered on the trusted FT-R platform with integrated retrieval capability. A simple pull of the release pin activates rescue mode, enabling controlled raising or lowering when every second counts.
Features:
- Dual-purpose functionality allows for quick, seamless transition from fall arrest to emergency retrieval. No extra tools or equipment needed.
- Mounts to tripods or modular davit systems for dependable operation in even the tightest spaces.
- Lightweight construction and design 30% lighter than comparable devices in its segment.
- An advanced mechanism reduces unintentional "nuisance" lockups for smooth, natural movement.
- ANSI Class 1-compliant for safe anchoring at or above the worker’s D-ring, away from edge exposures.
- Precision-engineered and rigorously tested to support workers up to 310 lbs.
- Equipped with a 3/16" galvanized steel cable for lasting support.
- Lightweight, durable housing with light green color denotes Class 1 certified performance.
- Features a low-profile and compact energy absorber that supports workers up to 310 lbs.
- UV- and scratch-resistant label keep warnings legible and units in service.
- Complies with ANSI Z359.14-2021, OSHA 1926.502 and 1910.140.
Material Specifications:
- Lifeline: 3/16" galvanized steel; 3,400 lb min. static strength
- Energy Absorber: Polyester tear-away
- Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Bracket: Plated alloy steel; 3,600 lb min. static strength
Performance Specifications:
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 1 SRL-R
- Avg. Arrest Force: 1,350 lb max.
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
Compliant With:
- ANSI Z359.14-2021
- OSHA 1910.140 and 1926.502
- 7281, 7278
