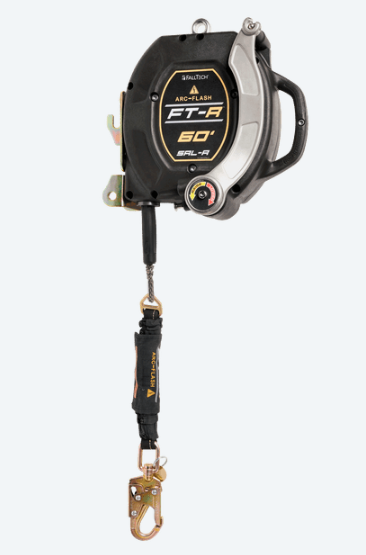

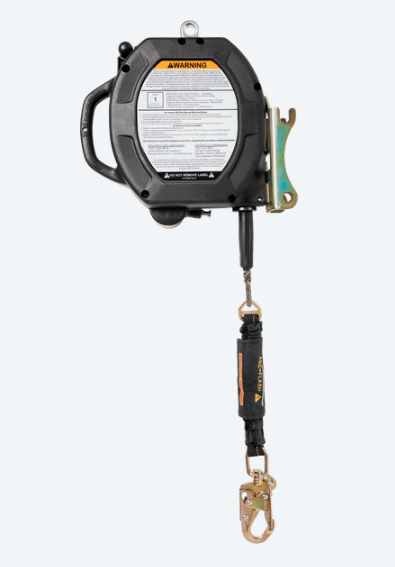

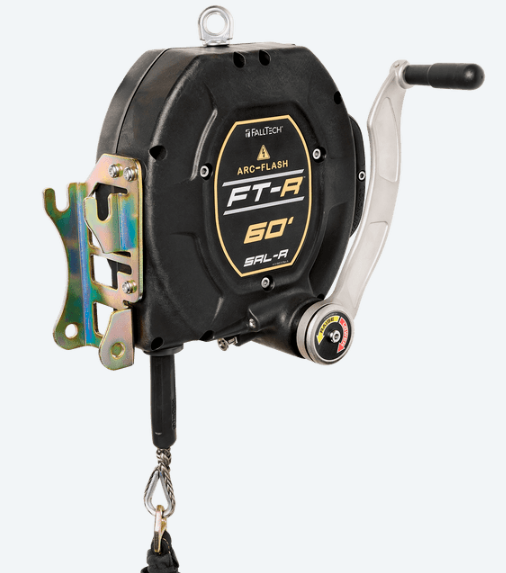

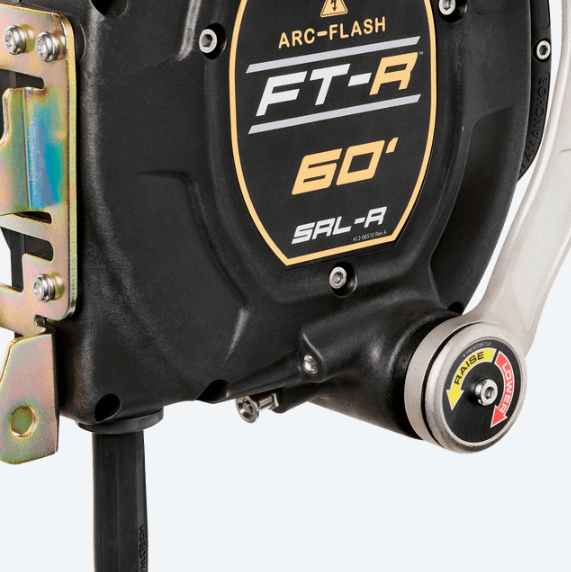

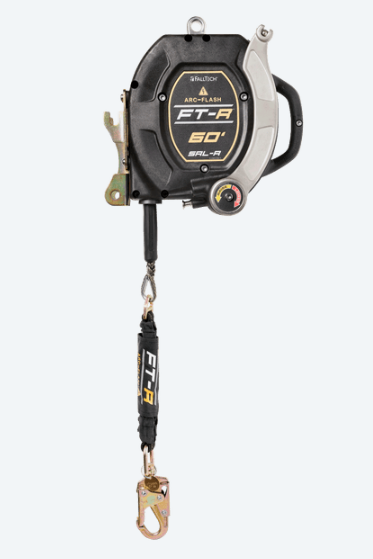

60’ FT-R Arc Flash Class 1 SRL-R with Steel Snap Hook
Engineered for the harshest electrical environments, the FT-R Arc Flash SRL-R delivers arc-rated protection with built-in retrieval capability. Lightweight, smooth, and compact, it goes beyond fall arrest by enabling controlled rescue at a moment’s notice. From tanks to tunnels to vaults, it’s the lifeline designed to get workers in—and out—safely.
Features:
- ASTM F887-rated with a Technora® lifeline made to withstand the extreme temperatures from arc flash hazards.
- Dual-purpose functionality allows for quick, seamless transition from fall arrest to emergency retrieval. No extra tools or equipment needed.
- Mounts to tripods or modular davit systems for dependable operation in even the tightest spaces.
- An advanced mechanism reduces unintentional "nuisance" lockups for smooth, natural movement.
- ANSI Class 1-compliant for safe anchoring at or above the worker’s D-ring, away from edge exposures.
- Precision-engineered and rigorously tested to support workers up to 310 lbs.
- Equipped with a ¼” Technora® lifeline for lasting support even in the event of an arc flash event.
- Lightweight, durable housing with black color denotes arc-rated protection.
- Features a low-profile and compact energy absorber that supports workers up to 310 lbs.
- Arc-resistant label keep warnings legible and units in service.
- Complies with ANSI Z359.14-2021, OSHA 1926.502, 1910.140, and ASTM F887-20.
Material Specifications:
- Lifeline: 1/4" Technora® rope; 4,500 lb min. static strength
- Energy Absorber: Polyester tear-away
- Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Bracket: Plated alloy steel; 3,600 lb min. static strength
Performance Specifications:
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 1 SRL-R
- Avg. Arrest Force: 1,350 lb max.
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
Compliant With:
- ANSI Z359.14-2021
- OSHA 1910.140 and 1926.502
- 7281, 7278
