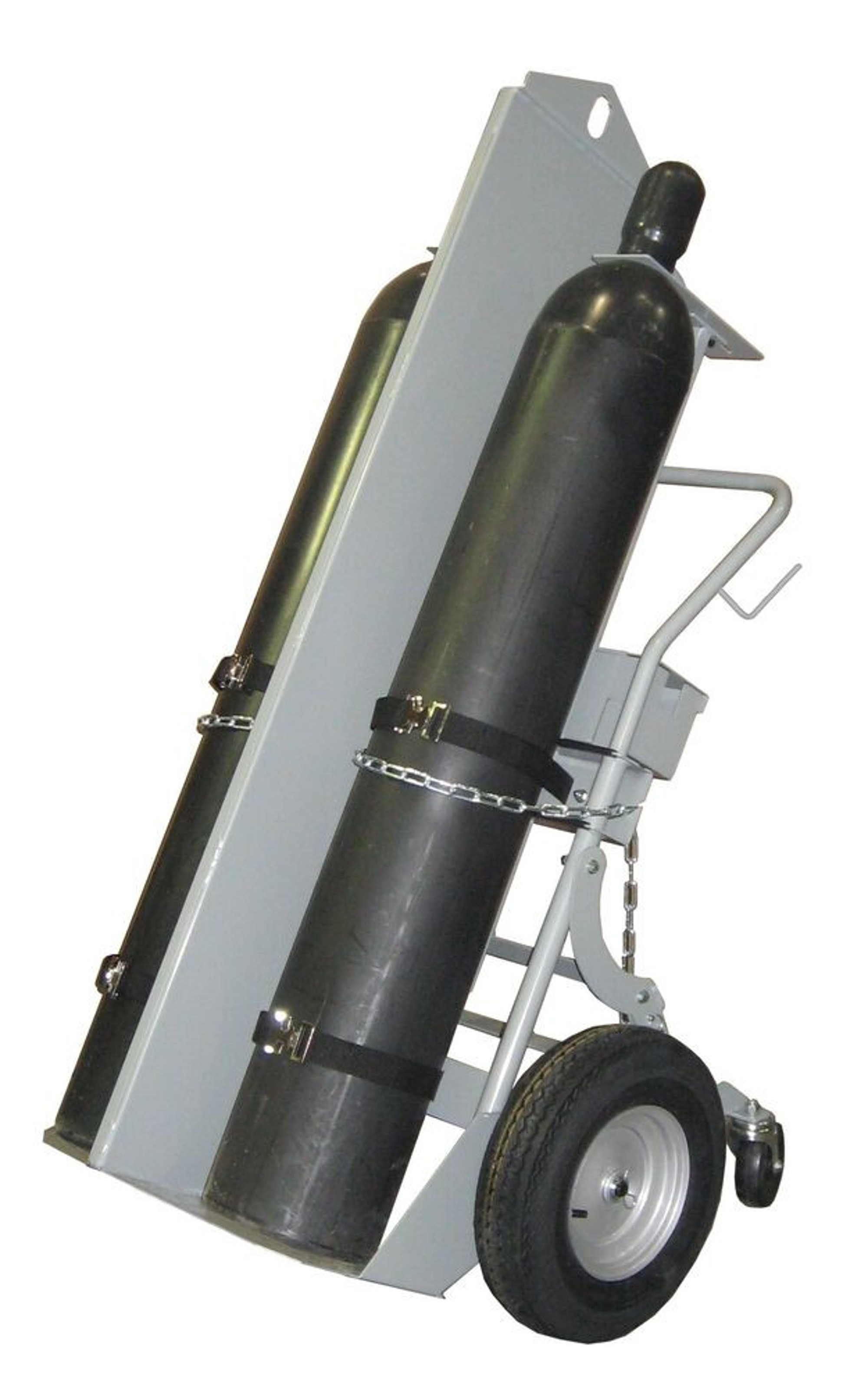

Safely store and transport a pair of fuel and oxidizer cylinders, common in welding applications, up to 13 in (330 mm) and 10 in (254 mm) in diameter, respectively. Constructed using 1.25 in (32 mm) diameter round steel tube with continuous welding, these durable, double-cylinder trucks provide optimum safety, strength and longevity. Floor plate made of thick 11 gauge (3 mm) steel with safety fins prevents warping or breaking. The zero-lift height loading allows floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Caster carriage features heavy steel bars and nylon washers for smooth folding action and easy storage in tight spaces. Corrosion-resistant powder-coat finish throughout for long life and smooth handling. Two heavy-duty 1.5 x 54 in (38 mm x 1372 mm) polypropylene support straps, lab tested to 1138 lb (516 kg), feature steel cinch buckles for secure attachment of cylinder eliminate any cylinder rolling potential seen in chain-secured units. Included welded loop chains provide a secondary means for securing the cylinders. Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck. Triple grip push handle greatly enhances safety on top heavy loads by expanding available grip area for improved leverage and swing radius. Includes tool box attachment with integral lockable lid for torch storage. Move hand truck easily around a construction site, into locations with poor accessibility or from floor to floor with this hoist-equipped design. Extensive structural framing with 0.375 in (10 mm) thick hoist plate makes these units safe when lifted by hoist rigs. Marinite I is a registered trademark of BNZ Materials, Inc.
- Steel encased Marinite I creates a one-hour fire barrier between the fuel and oxidizer - exceeds minimum NFPA 55, NFPA 1, OSHA and CGA standards
- Configured with 16 in (406 mm) steel hub pneumatic wheels with dual ball bearings for easier rolling-less effort required
- Rated at 600 lb (272 kg) weight capacity
- Locking posts and collar plates ensure total cylinder immobilization for hoisting applications
- Includes wide-set dual 5 in (127 mm) swivel caster assemblies for easier, stable transport - folds flat for storage
