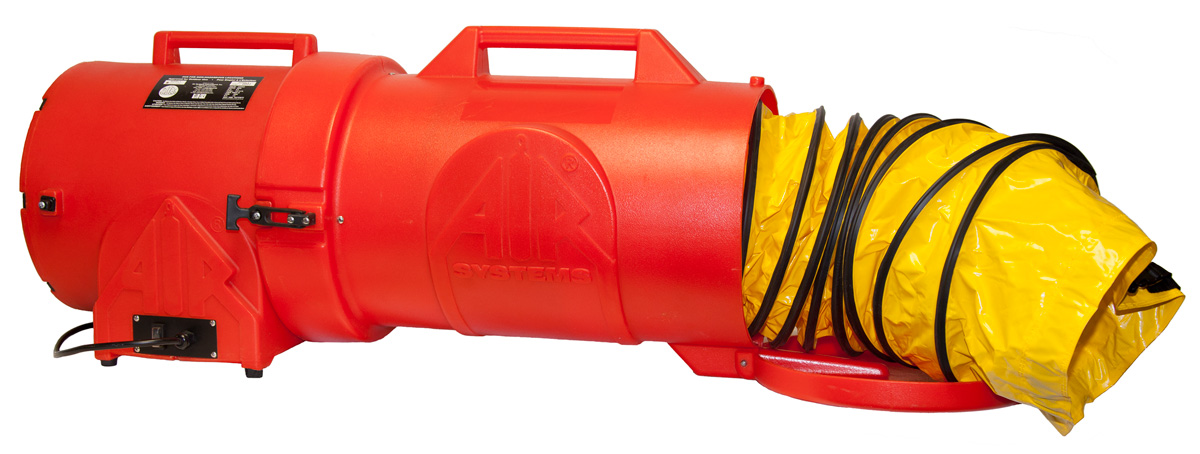

12 Inch Fan with Canister with 15 Feet of Ducting
The 12" (30 cm) Axial Fan is the latest addition to Air Systems' ventilation product group. Known for product quality and performance, Air Systems offers a rugged portable polyethylene fan line designed to accommodate a variety of applications as well as demanding job site conditions at an economical price.
12" AC Ventilation Fan details:
- 1 HP TEFC Motor @ 60 Hz, 115 VAC, 8.3 Amps
- Optional 1 HP .62 kW Motor @ 50 Hz, 220 VAC, 6.9 Amps
- 3350 RPM @ 60 Hz (2792 RPM @ 50 Hz)
- 6 Fan Blade - 12" (30.5 cm) Diameter
- 115 VAC Fan - 10' (3.1 m) power cord with US GFI plug
- Certified for Outdoor use
- 1,866 cfm (3170 cmh) free flow
- 1,497 cfm (2,458 cmh) with 15 foot duct (4.6 m) & one 90o bend
- 1,282 cfm (2,178 cmh) with 15 foot duct (4.6 m) & two 90o bend
Applications:
- Electrical Transformer Repair
- Construction / Maintenance
- Utility Companies
- Shipbuilding
- Open Trenching
- Underground Vaults
