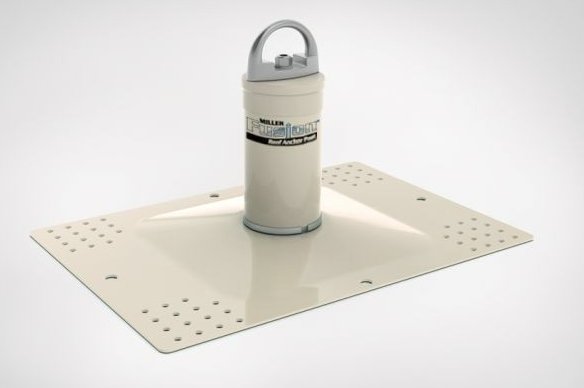

Multi-Purpose Metal Sheathing, Wood and Concrete Design Roof Anchor Post with Base
*No Hardware Included
With a variety of models available, the versatile, single-point anchor adapts to a wide range of roof designs including standing seam, membrane, built-up, metal sheathing, concrete and wood. The innovative base plate is designed for quick set-up, not requiring roof penetration to sub-surface rafters or trusses. In the event of a fall, the post orients in the direction of the force, the built-in energy-absorbing component activates and the base remains securely attached to the roof surface.
- Metal sheathing w/minimum thickness of 24 gauge (0.024 in. [0.61 mm])
- Trapezoidal spacing of 8 in. (203 mm) to 20 in. (508 mm) in one-inch (25.4 mm) increments
- Plywood with minimum thickness of 5/8-in. (15.9 mm) CDX
- Concrete decking with minimum thickness of 6.5 in. (165 mm) & minimum concrete compressive strength of 3000 PSI (20.7 MPa)
- Dimensions:
- Width: 15.25 in (387 mm)
- Length: 22.0 in (559 mm)
- Height: 8.6 in (218 mm)
- Post Diameter: 4.0 in (102 mm)
