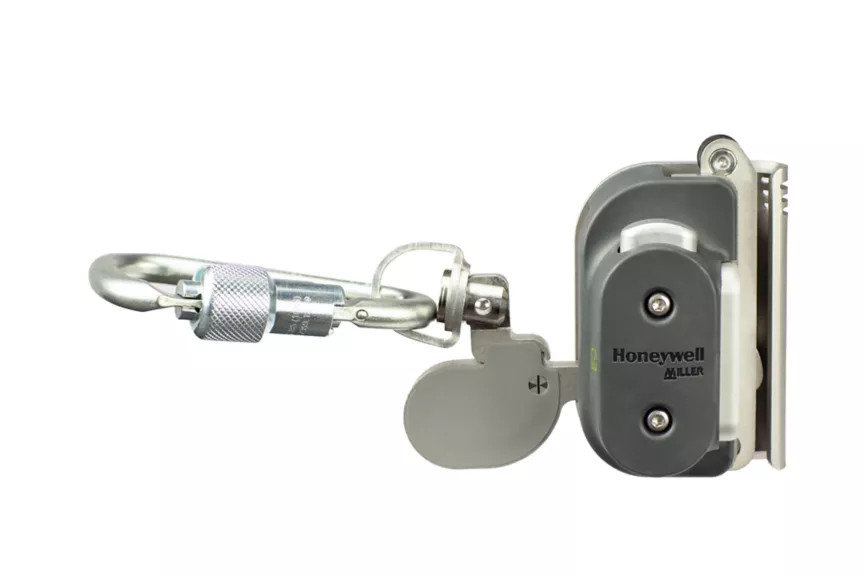

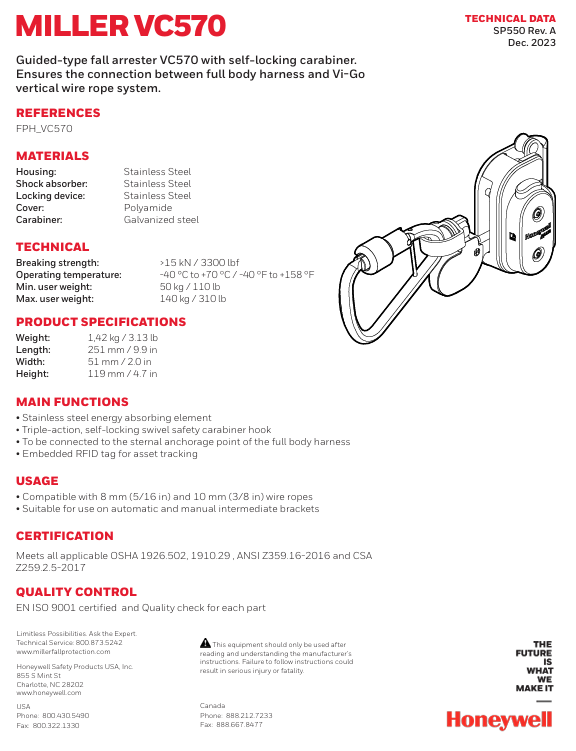

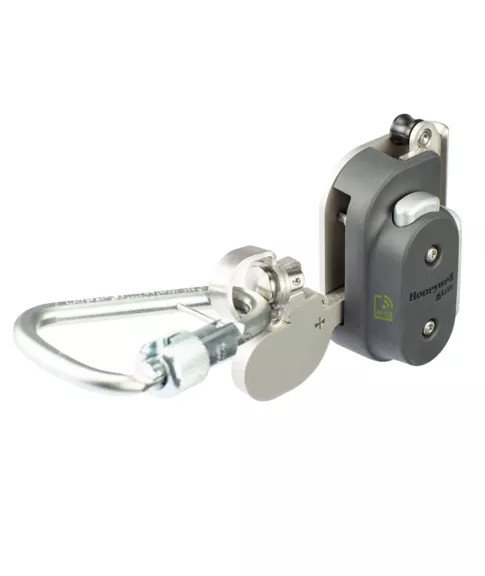

Soll Vi-Go Guided-type fall arrester FPH_VC570 with self-locking carabiner. Ensures the connection between full body harness and Vi-Go vertical wire rope system.
Materials:
- Housing: Stainless Steel
- Shock absorber: Stainless Steel
- Locking device: Stainless Steel
- Cover plate: Aluminium
- Carabiner: Galvanized steel
Technical Specifications:
- Breaking strength: >15 kN / 3300 lbf
- Operating temperature: -40 °C to +70 °C / -40 °F to +158 °F
- Min. user weight: 50 kg / 110 lb
- Max. user weight: 140 kg / 310 lb

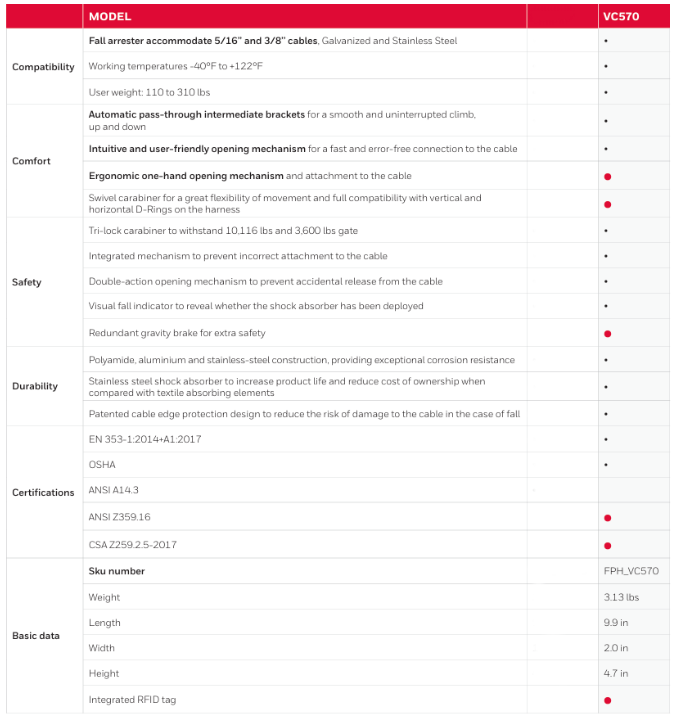

Product Specifications:
- Weight: 1.42 kg / 3.13 lb
- Length: 250 mm / 9.9 in
- Width: 51 mm / 2.0 in
- Height: 119 mm / 4.7 in
Main Functions:
- Stainless steel energy absorbing element
- Triple-action, self-locking safety carabiner hook
- Swivel carabiner for a great flexibility of movement and full compatibility with vertical and horizontal D-Rings on the harness
- Ergonomic one-hand opening mechanism and attachment to the cable
- Redundant gravity brake for extra safety
Usage:
- Compatible with 8 mm (5/16 in) and 10 mm (3/8 in) wire ropes
- Suitable for use on automatic and manual intermediate brackets
Certifications:
- OSHA 1926.502, 1910.29
- ANSI Z359.16
- CSA Z259.2.5-2017
Quality Control:
- EN ISO 9001 certified and Quality check for each part
