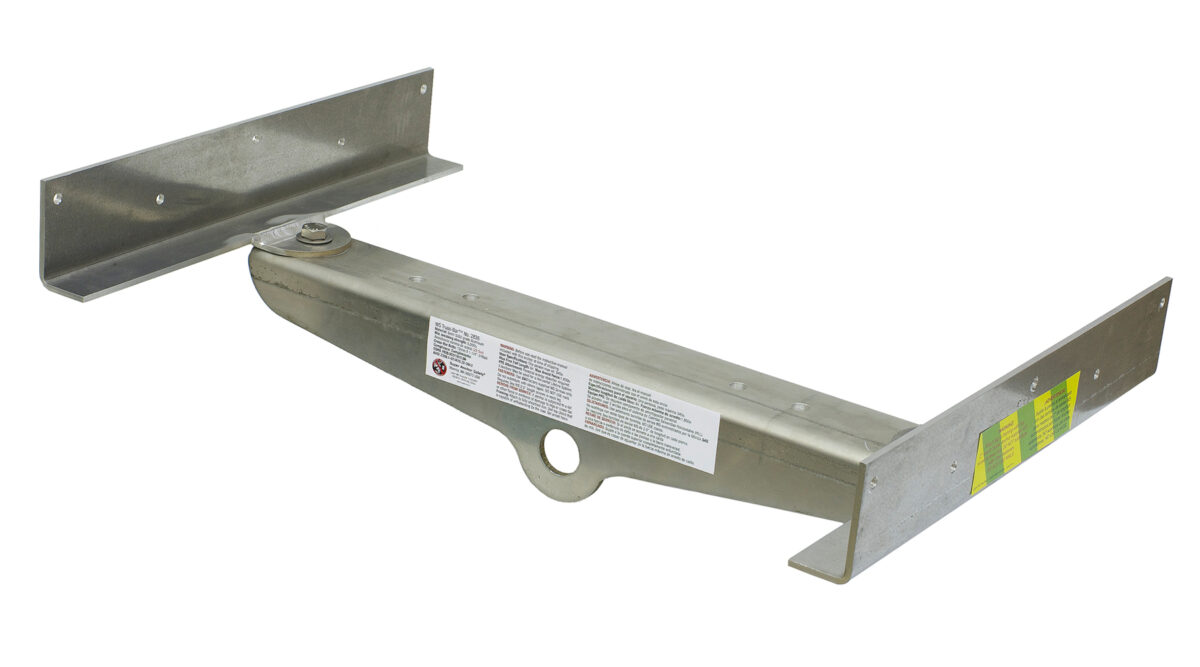

Finally, a certified anchorage device for painters and other trades working on the exterior of homes and multifamily buildings! Our WS-TrussBar is a SAS exclusive design specified for temporary use by installing inverted on the truss overhangs. The bar installs with a total of 10 ea. 2 in WS Series Wood Screws (supplied with anchor). It can be adjusted for trusses centered 12", 16 in and 24 in on center with a minimum 2x4 top chord material. The trusses must be fully sheathed with bird blocking in place and fascia board installed. Exterior wall sheathing is not required. Simply attach the anchor with the supplied screws, attach your vertical lifeline or SRL and go to work. Perfect for painting contractors, especially on homes that do not have any permanent fall protection installed. Minimum overhang at eave is 22". Please consult the WS-TrussBar 3011 prior to use.
- 5000 lb min. tensile strength
- Lightweight aluminum 6.5lb
- Installs on 2x4 and larger trusses
- Easily adjustable for standard top chord spacing
- Supplied with re-useable WS wood screws
- Single person tie off with lifelines or SRL's
- Use with HLL systems no. 1335 and 1336 for a maximum spacing of 20 ft.
- Can be used as a permanent tie-off point for attic access as required by confined space standards
- Rated for OSHA fall arrest
- English/Spanish instruction manuals
- Adjustable to fit 12 in, 16 in and 24 in top chord spacing
