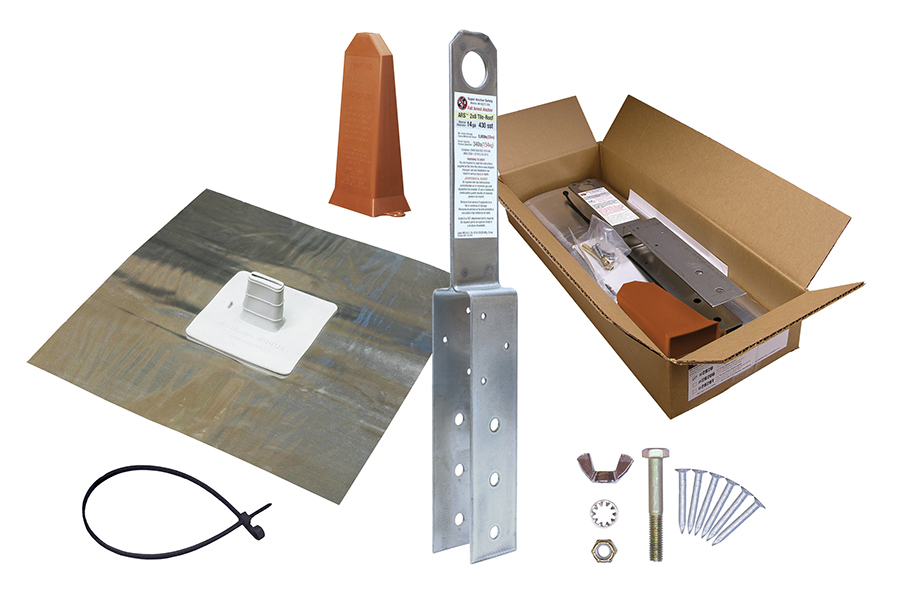

The Tile Roof Anchor features the same design criteria as our ARS 2x8 but with a stem that is 1.5 in taller for a total of 8". This model is specifically designed for use with high profile concrete and clay roof tiles. All ARS Tile Roof Anchor kits are supplied with everything needed for a complete permanent waterproof installation. The standard tile roof flashing features an EPDM boot that is vulcanized to a malleable 20"x20 in aluminum base providing a means to easily conform to the undulations of S-tiles and high profile concrete tiles. A large dimension lead base measuring 12"x16 in is also available as a top flashing. Both types can be used to meet the specifications of the National Tile Roofing Associations for pre-flashing or double jack system. Choose from 3 different color stem: terra-cotta, light gray and black to compliment most of the popular roof tile colors. Drawing on our 25 years of tile and slate roofing experience, the ARS Tile Roof Instruction manual includes a special 10-page flashing specification guide illustrating several practical ways to solve high- and low-profile roof tile penetration problems.
- Taller anchor stem to accommodate tile roofs
- Special flashing base for tile roofs
- Detailed installation guide included
- 100% waterproof with dual flashing system
- Factory supplied attachment hardware
- Permanent - stays for life of structure
