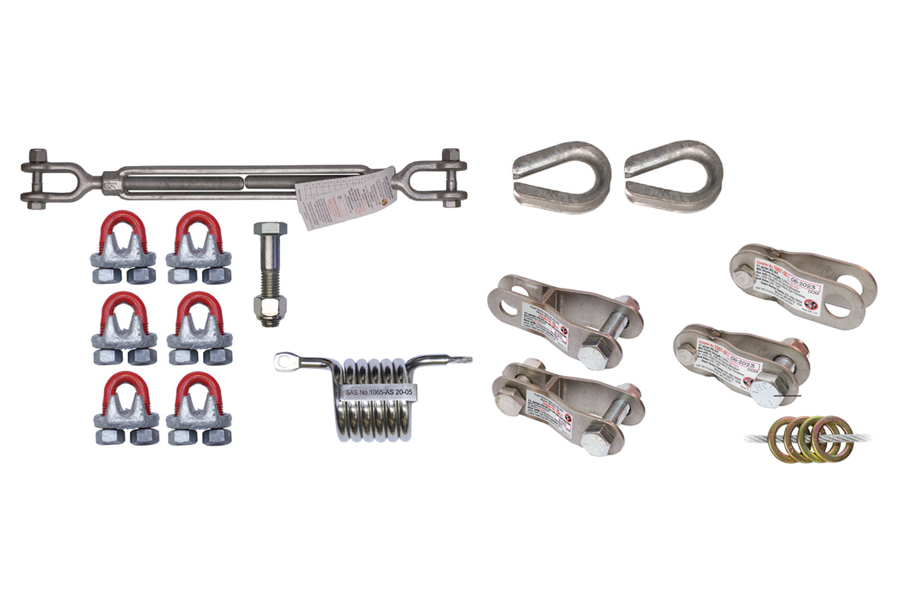

A complete assembly of engineered components required to rig a HLLS (horizontal lifeline system). Designed specifically for use with SAS commercial anchors, these kits can also be used with other mfg. equipment when engineered by a qualified person. Each Kit contains attachment bolts, lock nuts, couplers and wire rope. Specify the HLL length and factory swage option at time of ordering.
- HLL rigging kits for CRO anchors mfg. with No.1093/1093-S loop tops
- Rigging Kits: our standard turnbuckle/clamps/thimbles/sliders/energy absorber for lifeline lengths up to 120 ft. They include everything you need for a complete installation except for the cable. Available in galvanized or stainless-steel finishes
- Energy Absorber: a specialized in-line energy absorber
- Turnbuckles: used in the horizontal lifeline system to adjust wire rope length and tension. Available in galvanized or stainless-steel finishes. Use 1 turnbuckle in systems up to 60 ft and 2 turnbuckles in systems 60 - 120 ft
- Cable: galvanized or stainless-steel 3/8 in cable rated for 14000 pounds. Use in runs up to 120 ft and in conjunction with the rigging kits
- Cable Clamps: used to terminate the end of the cable lifelines and available in galvanized and stainless-steel finishes
- Cable Thimble: used to terminate the end of our cable systems and are required on both ends of the HLL. Available in galvanized or stainless-steel finishes
- SAS Coupler Adapter: used to link turnbuckles, energy absorbers and CRA together
- Connector "O" Rings: permanently attached to the HLL and used to connect your personal protective equipment to slide through pass-thru top CRA's
- Pass-Thru Converter: a device that converts Pass-Thru Top CRA's into a Loop Top to connect your PPE to for a fall arrest rating
- Label Packages: comprehensive warning, instruction and inspection label packages for all rigging equipment and hardware
