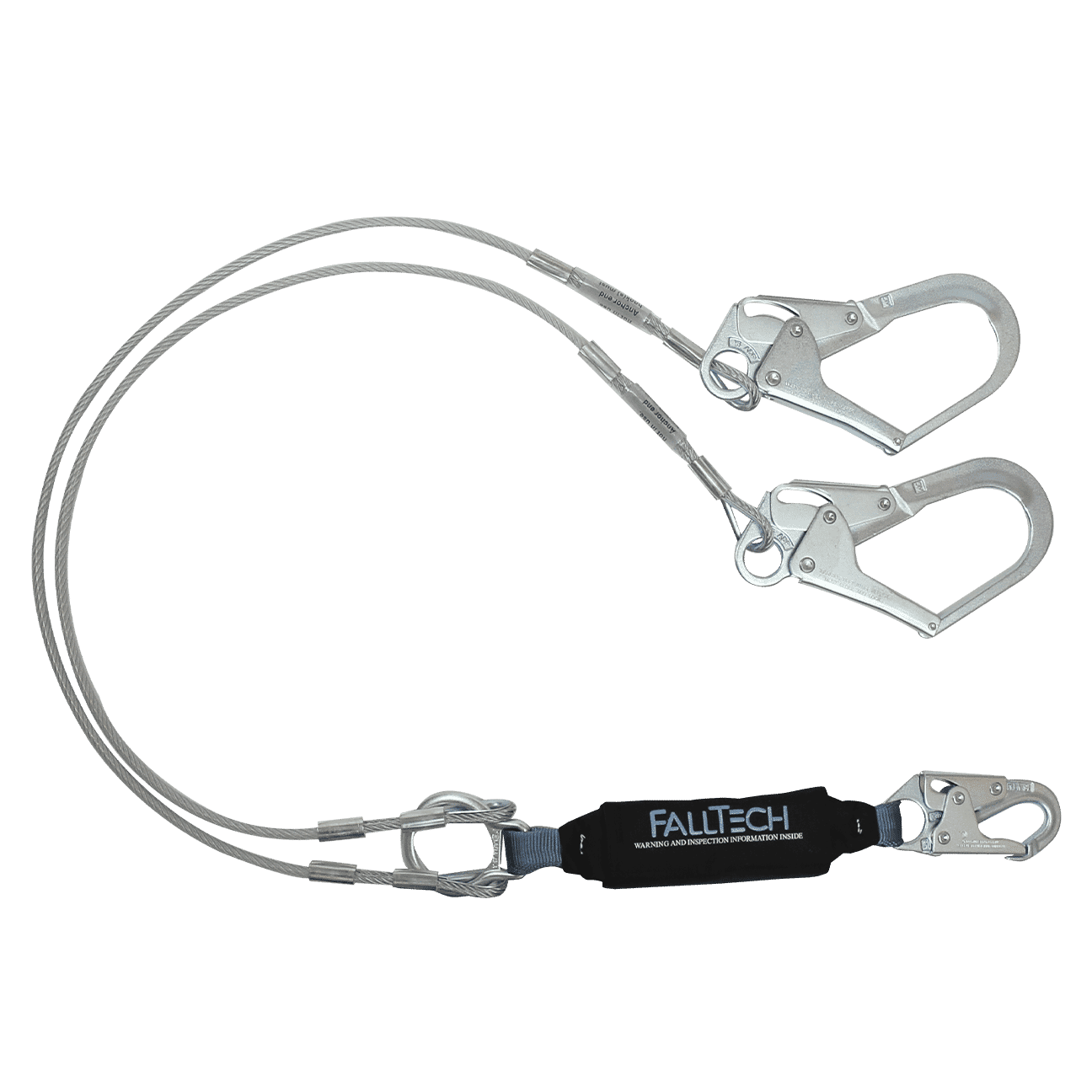

6' ViewPack Coated Cable Energy Absorbing Lanyard, Double-leg with Steel Connectors
- Built with rugged 1/4 in vinyl-coated galvanized steel cable
- Well-matched for harsh and abrasive environments
- Energy absorber features patented ViewPack cover with inspection window
- ViewPack cover also features WrapPack label protection
- Includes alloy steel snap hooks for harness attachment and anchorage connections
- Double-leg design facilitates 100% tie-off
- Complies with:
- ANSI Z359.13-2013
- OSHA 1926.502 and 1910.66
Material Specifications:
- Cable: Coated galvanized steel; 5,000 lb min. static strength
- Energy Absorber: Polyester tear-away
- Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Performance Specifications:
-
Static Strength: 5,000 lb min.
-
ANSI Lanyard Class: 6' free fall
-
Max. Arrest Distance: 48"
-
Avg. Arrest Force: 900 lb
-
Max. Arrest Force: 1,800 lb
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 310 lb max.
