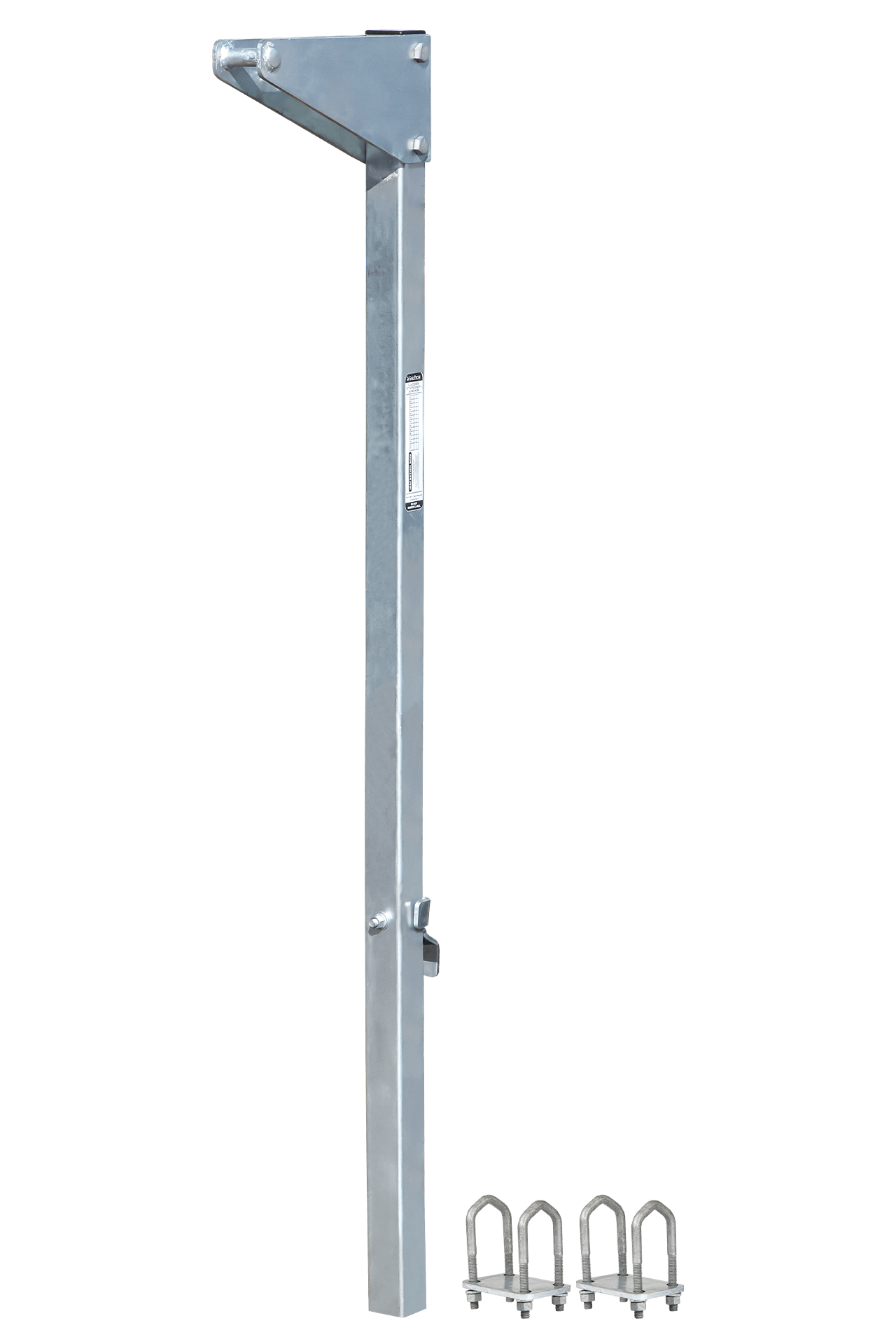

5' Bolt-on Ladder Stanchion Anchor with 12" Overhead Offset
- Fully galvanized structural steel post, hardware and fasteners for durable performance
- Included hardware and fasteners allow for quick and easy install to a wide variety of fixed ladders
- Can be installed in the middle of ladder or off to one side for maximum access at top of ladder
- 5 ft and 10 ft Post heights maintain overhead anchorage for ladders that lead up to or extend past the walking-working surface
- 12 in offset optimal for harness dorsal D-ring attachment
- For permanent installation onto fixed ladders of various types and sizes
- For use in personal fall arrest applications
- Optional rung reinforcements available for attachment to hollow rung ladders
- Meets OSHA 1926.502 and 1910.140 regulations
Materials Specifications:
-
Post: Galvanized and powder coated steel
-
Anchor Bracket: Galvanized and powder coated steel
-
Mounting Hardware: Galvanized and powder coated steel
Performance Specifications:
-
Static Strength: 3,600 lbs min.
-
ANSI User Capacity: One user up to 310 lb max.
-
OSHA User Capacity: Allowable up to 425 lb max.
