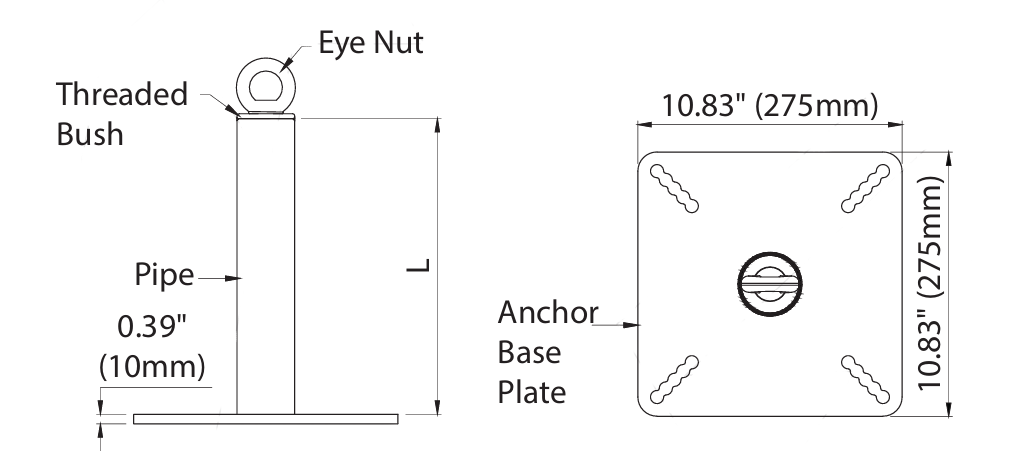

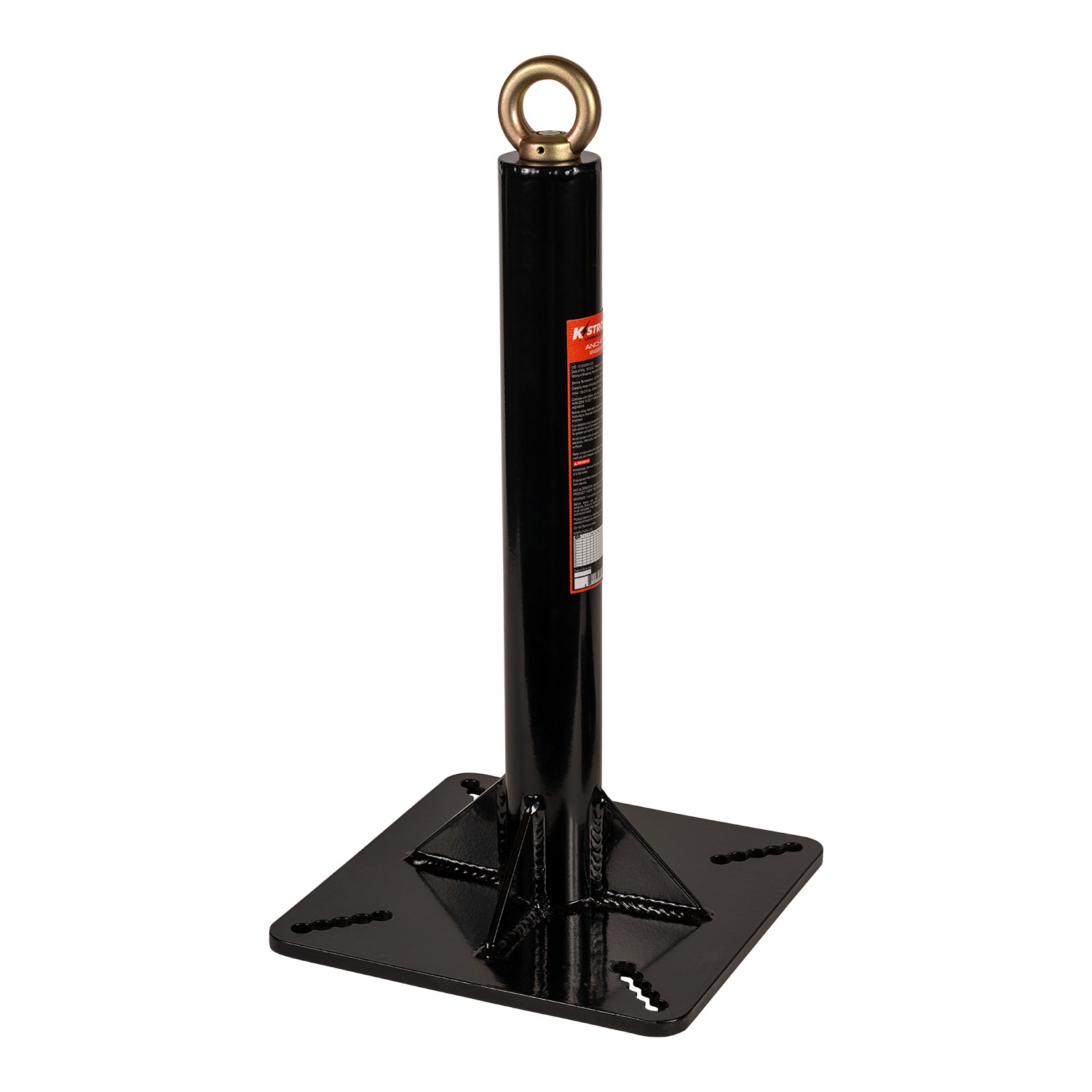

12" or 18″ End Post option for Fixed Systems with Fixed Eye Bolt (ANSI)
Design:
- An anchor is designed to be fixed on a metal I-beam to install a horizontal lifeline
- The base has an adjustable opening to adapt to the type of beam section
- It is easy and quick to install with the help of a nut and bolt
- The post comes with a pre-installed steel anchor to make connections
Features:
- For fixed systems with fixed eye bolt
- Compatible with Minimum Flange Width: 7.09" (150mm)
- Compatible with Maximum Flange Width: 8.66" (220mm)
- Material: Alloy Steel
- Finish: ED Coated Black / Powder Coated Black
- System Strength: 23 kN
- Relevant Standards: Meets or Exceeds ANSI / ASSE Z359.18-2017 Type A
